Linear Rail System – HGR & HGW

RM145.00RM420.00

Tighter tolerance, lower noise than SBR12

Load Capacity
HGR15: 25kg/guide
HGR20: 50kg/guide

Add to Cart
Linear Rail System - HGR & HGW
RM145.00RM420.00

Free shipping over RM200 (use code: ELITACO)

  • Order yours before 9:30am for same day dispatch
  • Free Local Area Delivery. T&C Applies.
  • Pickup in store within business hours
Guaranteed Safe Checkout

  • Linear Rail System HGR20 Bearing made of Carbon steel shaft with hard chrome finish & aluminium base
  • Maximum load capacity: 200kg
  • Two sliders included, works with M5 screw
  • Smooth movement
  • Easy to build an economical linear guiding system
  • Cylindrical guide with aluminum base support and principal rail, stabilizing the original rail
  • Pre-drilled hole for easy implementation
  • Widely used in large transmission equipment: industrial robots, cracker machines, clothing supporting devices & automation machine

HGW15CA Guide & HGR15 Rail

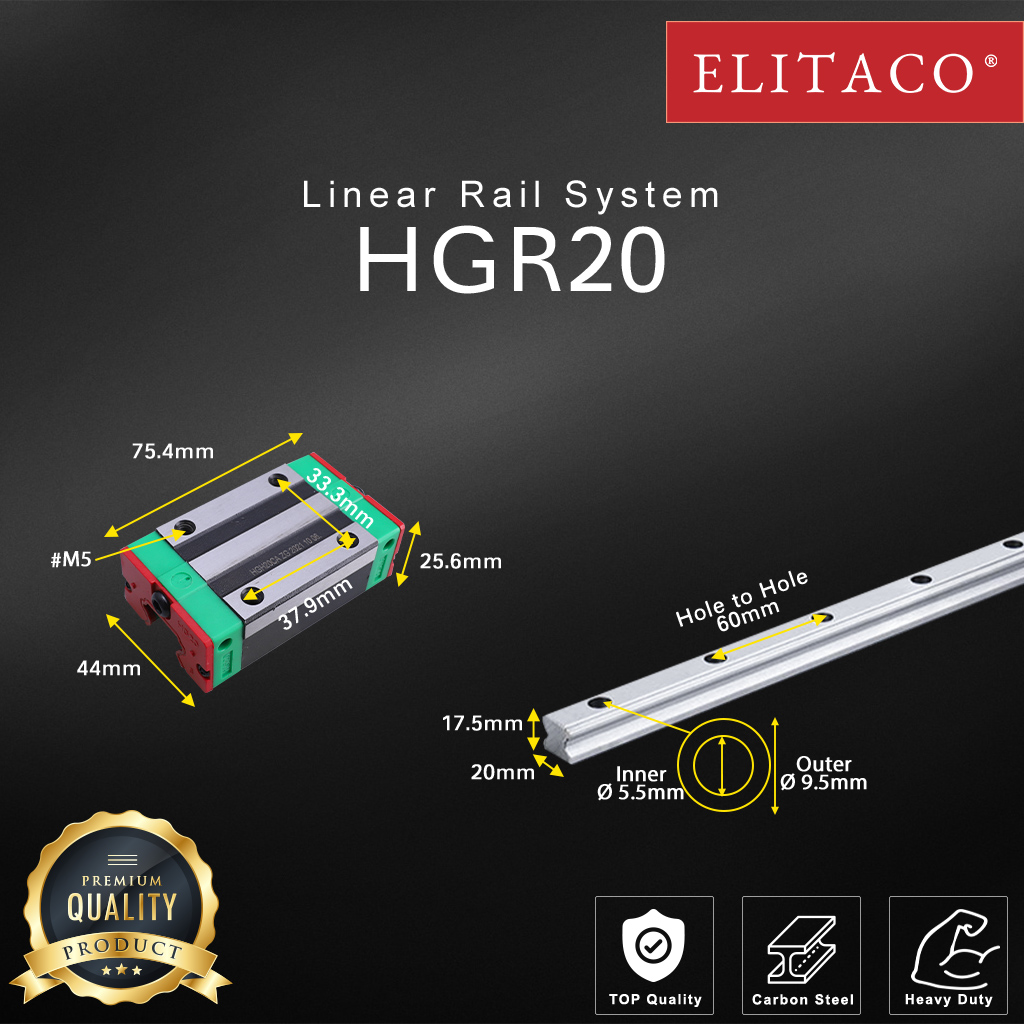

HGW20CA Guide & HGR20 Rail

Additional information

WeightN/A
Dimensions3 × 3 cm
Type: No selection

HGR15, HGR20

Length: No selection

0.5m, 1m, 1.2m, 1.5m, 1.6m, 1.8m, 2m, 2.4m, 2.5m, 3m

Included: No selection

1x Rail + 2x Slider + 8x M5 Bolt
